Power Distribution Boards

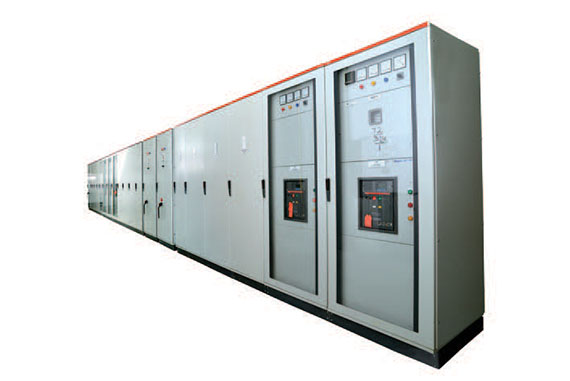

LV Panels

Ratings at 50°C ambient Up to 4000A
Short Circuit Rating Up to Icw – 65kA 3 sec Ipk – 143kA
Form of Construction Form 2A & B / Form 3A & B / Form 4A & B
Protection Class Up to IP65 & IK10
Type Testing & Certifications Fully type Tested including internal arc Test & ASTA Certified.
Standards IEC – 61439 – 1 & 2

Withdrawable execution for rating upto 800A, 35kA, 1 sec (available upon request)

SMDB’s

Ratings at 50°C ambient Up to 4000A
Short Circuit Rating Up to Icw – 65kA 3 sec Ipk – 143kA
Form of Construction Form 2A & B / Form 3A & B / Form 4A & B
Protection Class Up to IP65 & IK10
Type Testing & Certifications Fully type Tested & ASTA Certified.
Standards IEC – 61439 – 1 & 2

Withdrawable execution for rating upto 800A, 35kA, 1 sec (available upon request)

Automatic Transfer Switch with and without By pass

Ratings at 50°C ambient Up to 4000A
Short Circuit Rating Up to Icw – 65kA 3 sec Ipk – 143kA
Form of Construction Form 2A & B / Form 3A & B / Form 4A & B
Protection Class Up to IP65 & IK10
Type Testing & Certifications Fully type Tested & ASTA Certified.
Standards IEC – 61439 – 1 & 2

Feeder Pillars and LCP’s

Ratings at 50°C ambient Up to 800A. (Other ratings on request)
Short Circuit Rating Up to Icw – 50kA 1 sec
Form of Construction Form 2
Protection Class Up to IP65
Type Testing & Certifications Fully type Tested & ASTA Certified
Standards IEC – 61439 – 1 & 2

DC Distribution Boards

Ratings at 50°C ambient Up to 4000A
Form of Construction Form 2, 3 & 4
Protection Class Up to IP65
Standards IEC – 61439 – 1 & 2

Final Distribution Boards (Row type, Single or Multi Split Configurations)

Ratings at 50°C ambient Up to 250A
Short Circuit Rating Icw  17kA for 0.25 secs; Ipk 34 kA
Protection Class IP41, 55 & 65
Type Testing & Certifications Fully type Tested & ASTA Certified
Standards IEC – 61439 – 2

400Hz Panel for Aviation Applications

Ratings at 50°C ambient Up to 800A. (Other ratings on request)
Short Circuit Rating Upto  Icw – 50kA 1 sec
Protection Class Form 2
Type Testing & Certifications Up to IP65
Standards IEC – 61439 – 1 & 2
